Full Description

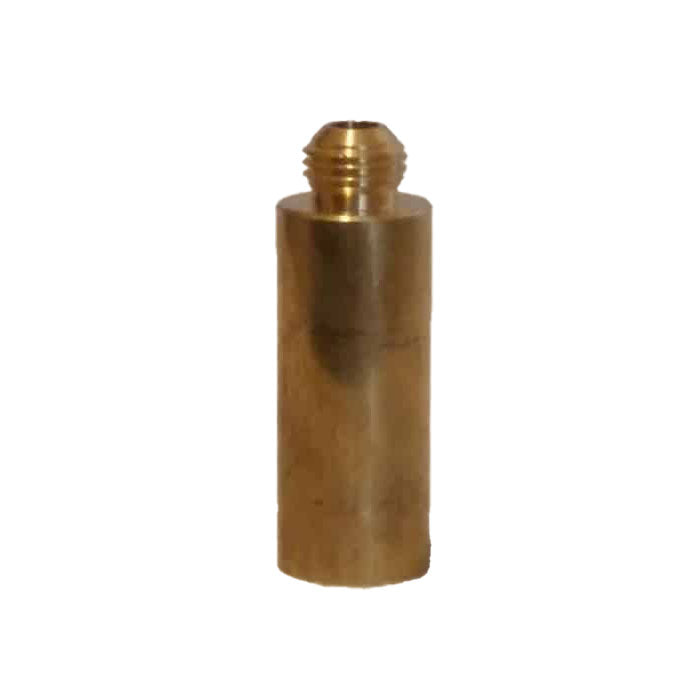

Introducing the Extender for PTV and PT Models, a valuable addition for insulated piping systems or when extended length is required. This innovative PTE Extender is designed for easy installation above the PTV or PT core, featuring a reliable O-ring seal. It offers the convenience of field installation without the need to remove the PTV or PT from the piping system. Crafted with a durable brass body and an EPDM O-ring seal, this extender is rated for robust performance at pressures of up to 500 PSI (3450 kPa) and temperatures of 250°F (120°C), ensuring dependable and versatile use in various applications.
| MODEL | A | B | WEIGHT | |||
|---|---|---|---|---|---|---|
| in | mm | in | mm | lbs | kg | |
| PTE | 1.59 | 41 | 0.54 | 14 | 0.90 | 0.04 |
