Full Description

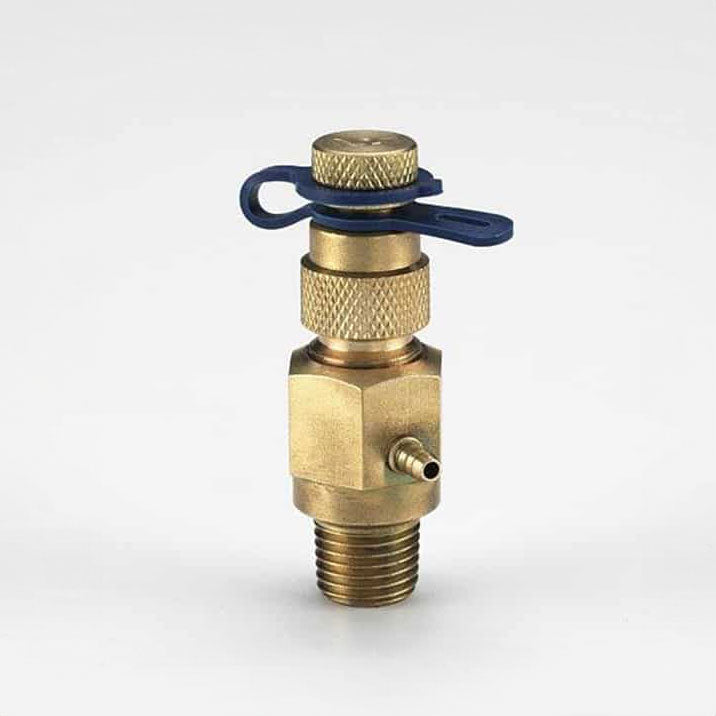

Introducing our versatile Combination Manual Air Vent and Pressure/Temperature Test Port, engineered with a durable brass body and featuring a dual durometer EPDM core for reliability. With a blowout-proof stem and a convenient side discharge vent equipped with a 1/8" (4mm) hose barb, this component ensures dependable operation. It also comes with a threaded brass cap complete with an O-ring seal and a neoprene retainer strap for added security. This product is designed to accept standard 1/8" (4mm) gauge adapters or thermometer stems, making it highly adaptable. It boasts a robust rating, capable of handling pressures up to 250 PSI (1725 kPa) and temperatures of 250°F (120°C), ensuring its suitability for various demanding applications.
| MODEL | NPT CONN | A | B | C | WRENCH SIZE | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | lbs | kg | |||
| PTV-025 | 1/4" | 1.5 | 40 | 0.84 | 21 | 0.32 | 9 | 3/4" | 0.154 | 0.07 |
| PTV-050 | 1/2" | 1.50 | 40 | 0.98 | 25 | 0.32 | 9 | 3/4" | ||
